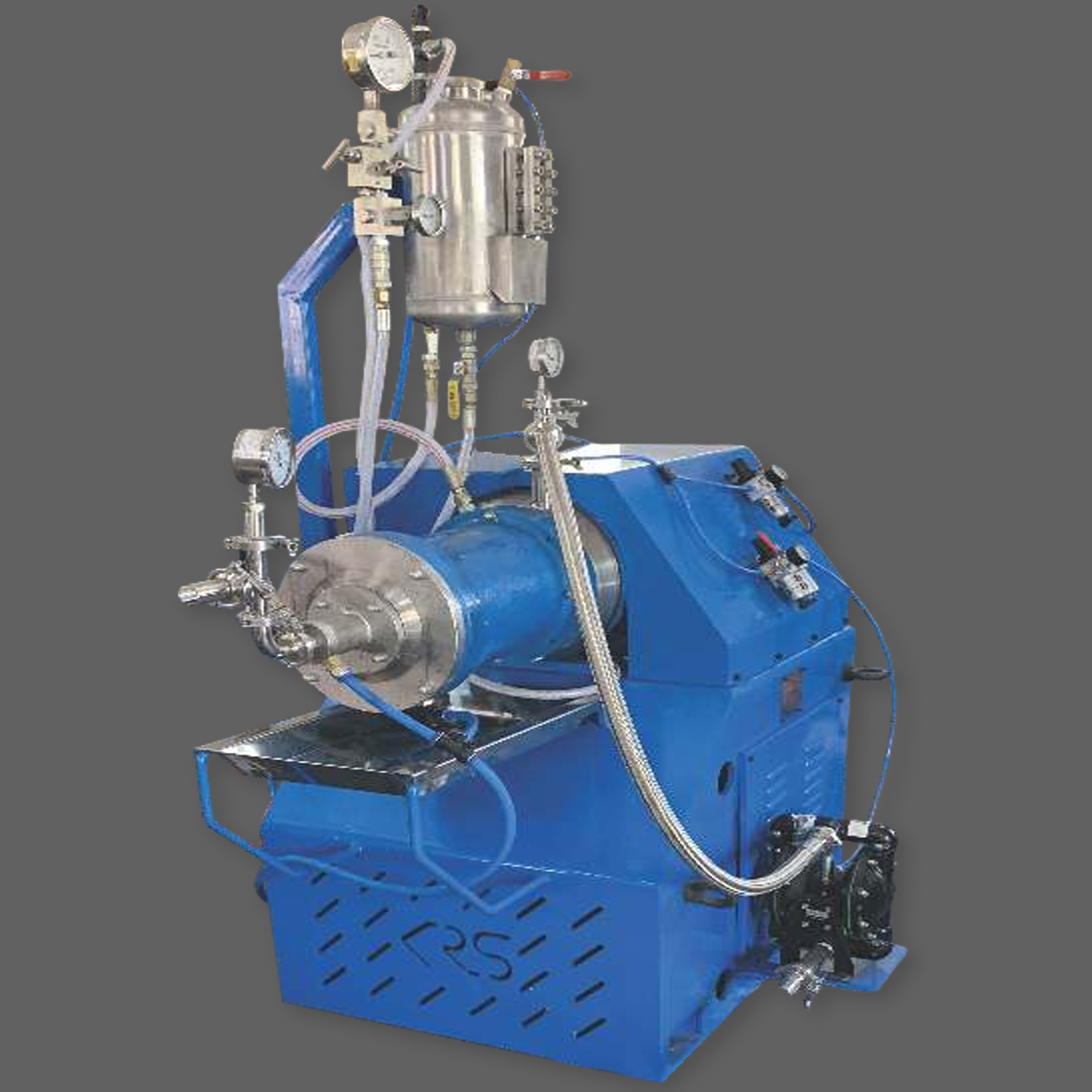

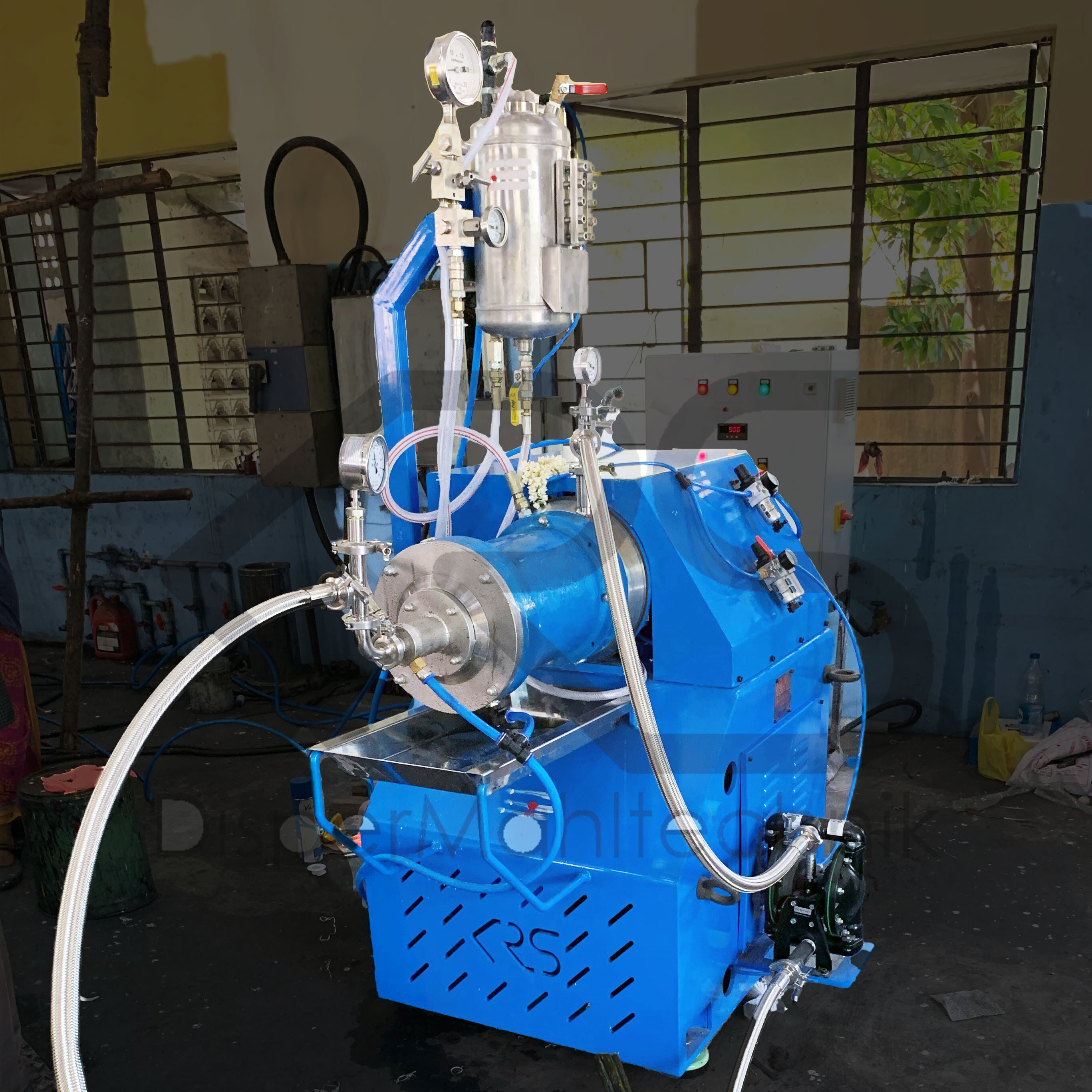

The High Energy Bead Mill can impart more energy to milling media for dispersion than other conventional mills. The geometry of the energizer dispersion tool the milling media in toroidal pattern to high energy concentration zones through out the milling chamber.
The micro media mill is equipped with state of the art separation system for usage of micro milling media up to 0.05mm nominal size.Coaxially positioned discharge port with larger area for media separation helps in promoting the through put.
The double acting cartridge mechanical seal with suitable buffering plan makes the horizontal bead mill withstand higher pressure.
Baf?ed ?ow path of coolant and increased heat transfer area makes the dispersion of heat sensitive materials possible. The pressure and temperature inside the mill can be continuously monitored.
The higher energy input, thorough ?uidisation, ability to separate micro milling media and wear resistance milling surfaces make our High ef?ciency bead mill capable of achieving nano milling/dispersion.
Main Features
Rotating Energizer impellers at peripheral speed up to 13m/S.
Higher energy concentration zones ensured by Toroidal ?ow of the milling media.
State of the art dynamic separation system for usage of micro milling media up to 0.05mm nominal size.
Ability to achieve nano size dispersion.
Wear resistant milling surfaces ensure long life of the machine.
Dispersion of high viscous millbase is possible Appreciably higher through put rate.
Better heat dissipation for the use with heat sensitive materials.
Double acting cartridge mechanical seal for sealing the rotating shaft and the milling chamber.
Effortless removal of the milling chamber on rail helps easy cleaning of the mill.
Strategically placed media collection tray ensures no wastage of media.
Easy operation of the mill and simple maintenance.
Designed for circulation or continuous milling operation.
Variants
<
Filter screen separation of milling media up to 0.2mm nominal size.
Screenless separation of milling media up to 0.05mm nominal size.
Safety
According to latest safety regulations that include:
The mill is stopped if the temperature of the product at outlet exceeds the set point.
The pump is stopped if the pressure inside the milling chamber exceeds the set point.
The mill & pump are stopped if the pressure & level of buffer ?uid decreases below the set point.
Easily accessible emergency button on the machine.
